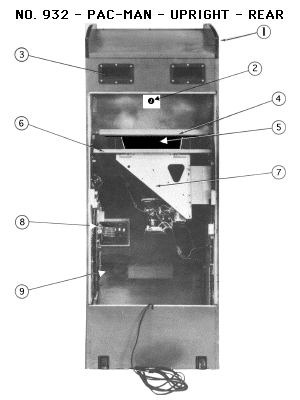

Pac-man - upright cabinet - rear view - parts list

ITEMBally / Midway
part number
DescriptionImagePriceadd to cart
1 0000-00000-0000 ORANGE PLASTIC TEE MOLDING approx. 20 ft, 3/4 inch wide. A perfect match for the original color of ORANGE, yours turned YELLOW over time!TEE MOLDING $ 25
2 A097-00001-0000 LOCK 7/8" barrel with 2 keys and short cam. 2 required; used on the coin door and the back door.LOCK + KEYS $ 14
3 0894-00916-0000 HAND LIFTHANDLE $ 0Call 512-447-8888 for info

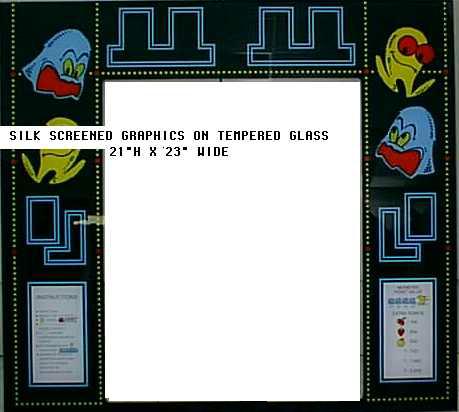

4 0932-00900-00XF TEMPERED GLASS MONITOR BEZEL - WITH GRAPHICS - 21" HIGH X 23" WIDE Tempered glassMAIN GLASS BEZEL $ 189
5 A866-00064-0000 BLACK PLASTIC C.R.T. BEZEL Fits around your 19 inch monitor to block any light getting around the picture tube. PLEASE NOTE: Freight charges on this item may exceed it's value. You should only purchase it along with a tempered upright glass bezel. ALSO: This item is NOT REQUIRED if you replace the original CRT monitor in your game with the flat screen LCD monitor listed below.PLASTIC BEZEL $ 49
6 0508-00106-0000 METAL MONITOR BRACKETSMETAL BRACKETS $ 0Call 512-447-8888 for info
7 0017-00003-0339 19 INCH LCD COLOR RGB MONITOR - Complete display replaces the original picture tube, circuit boards and metal chassis in your full size upright cabinet. Modified to plug right into your original game's wiring harness which makes for an easy do-it-yourself installation. Read more here:
http://Twobits.com/Monitors/
LCD MONITOR - COMPLETE $ 389
8 A084-91415-B617 PAC-MAN - DIAGNOSTIC AND REPAIR PROGRAMDIAGNOSTIC + REPAIR KIT $ 99
9 A082-91375-B000 GAME BOARD complete; PAC-MAN or Ms. Pacman; you name the game!GAME BOARD $ 400
10 0000-00000-0000 FUSES and FUSE HOLDERS - set of two holders and all fusesFUSES & FUSEHOLDERS $ 29
11 0000-00000-0000 PAC-MEND EDGE CONNECTOR REPAIR KIT - Replaces the burned edge connectors on your GAME BOARD and WIRING HARNESSPAC-MEND - EDGE CONNECTOR REPAIR KIT $ 39
15 A775-00013-0000 FAN - Ball bearing, 115 volt, 4.7" square x 1.5" with solder terminals, internal thermal protectionCOOLING FAN $ 21
12 0017-00009-0477 COIN BOX - MOLDED black plastic insert to hold all those quarters. Measures 9 1/2" by 7" at the top and 5" tall.Coin box $ 22Call 512-447-8888 for info
13 0017-00009-0033 LATCH - pair of BASSICK CLAMP type snap latches. Mates to your strike bracket to hold down the control panel.Latch $ 18
14 00603-00131-00XF STRIKE for snap latch - PAIR - short style for upright cabinetsSTRIKE FOR LATCH $ 8
16 NEW ITEM $ 0Call 512-447-8888 for info
