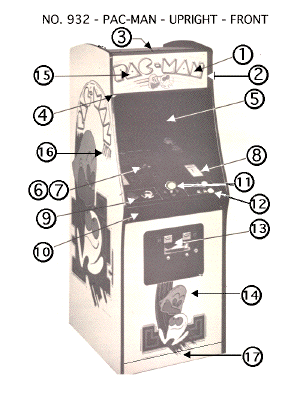

Pac-man - upright cabinet - front view - parts list

ITEMBally / Midway
part number
DescriptionImagePriceadd to cart

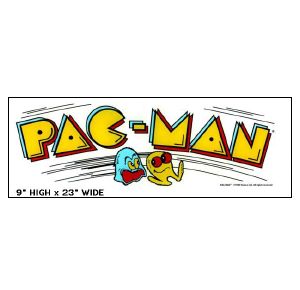

1 0932-00901-00XF DECORATIVE HEADER PLEXIGLASS MARQUEE 9" X 23" - Silk-screened graphics on the inside of the plexiglass. a Perfect fit in your Pac-man upright cabinet.HEADER MARQUEE $ 49
2 0537-00903-0057 GLASS CHANNEL decorative side edges - 7 + 5/8" LONG (1 PAIR) - You get 4 one foot long sticks; 2 pieces 3/16" and 2 pieces 1/4" to insure a perfect fit on any marquee. Score and snap to size.HEADER SIDE CHANNELS $ 4
3 0866-00103-00XF UPPER/LOWER HEADER RETAINER (1 PAIR) plus 6 TORX TAMPER RESISTANT SCREWS. OUT OF STOCK; NO PLANS TO REMAKE THESE, SORRY.HEADER BRACKETS $ 19Call 512-447-8888 for info
4 0000-00000-0000 ORANGE PLASTIC TEE MOLDING approx. 20 ft, 3/4 inch wide. A perfect match for the original color of ORANGE, yours turned YELLOW over time!TEE MOLDING $ 25
5 0017-00009-0393 BLACK SPEAKER GRILLE W/SLOTS includes 4 black anodized corner bolts and KEP nuts. 5 1/2" x 9"SPEAKER GRILLE $ 18
6 A866-00064-0000 BLACK PLASTIC C.R.T. BEZEL Fits around your 19 inch monitor to block any light getting around the picture tube. PLEASE NOTE: Freight charges on this item may exceed it's value. You should only purchase it along with a tempered upright glass bezel. ALSO: This item is NOT REQUIRED if you replace the original CRT monitor in your game with the flat screen LCD monitor listed below.PLASTIC BEZEL $ 49
7 0017-00003-0339 19 INCH LCD COLOR RGB MONITOR - Complete display replaces the original picture tube, circuit boards and metal chassis in your full size upright cabinet. Modified to plug right into your original game's wiring harness which makes for an easy do-it-yourself installation. Read more here:
http://Twobits.com/Monitors/
LCD MONITOR - COMPLETE $ 389
8 0932-00900-00XF TEMPERED GLASS MONITOR BEZEL - GRAPHICS 21" HIGH X 23" WIDE on the inside of a Tempered glass sheetMAIN GLASS BEZEL $ 189

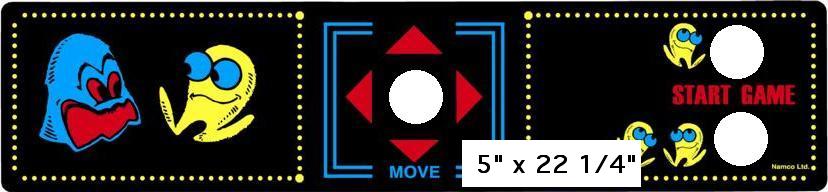

9 0932-00100-00XF CONTROL SHELF DECORATIVE OVERLAY 5 high x 22 1/4 wide wide with all holes pre-punched. Silk-screened inks on the inside of a polycarbonate sheet. Super peel and stick glue. Identical to the original in every way. Manufactured under license from NAMCO.GRAPHIC OVERLAY $ 39
10 0000-00000-000 BOLT KIT Everything you need to install your new control panel overlay. (8) #8 x 32 x 1.25 black oxide finish steel carriage bolts with kep nuts and (4) #6 self tapping corner screws. Duplicate of originals.BOLT KIT $ 4
11 A595-00005-0000 CONTROL ASSY / JOYSTICK Engineered to look and feel just like the original. The right size red ball, the right height off the panel, correct throw from side to side with top quality micro switches and spade connectors.JOYSTICK $ 39
12 0017-00009-0384 PUSH BUTTON ASSY. Ñ WHITE (1 PAIR) Player 1 and Player 2 START-A-GAME buttons. Includes huge PAL nuts.START BUTTONS $ 10
13 0017-00003-0219 #194 BULBS - 14 volt wedge base BULBS - Used in coin door. Box of 10BULBS - box of 10 $ 8
14 0000-00000-0000 FRONT GRAPHIC Silk screened inks on heavy white vinyl; just peel and stick. This item is included in the 3 piece SIDEART set. OUT OF STOCK INDEFINITELY!FRONT GRAPHIC $ 0Call 512-447-8888 for info
15 0017-00003-0309 BULBS 25T10 - Pair - 2 REQUIREDBULBS - Pair $ 6

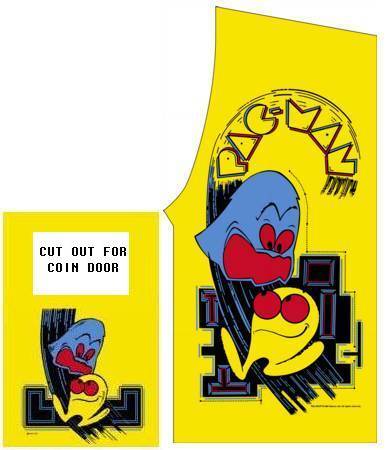

16 0000-00000-0000 3 piece GRAPHIC SET - Both sides plus the FRONT. Silk screened inks on heavy white vinyl; just peel and stick. OUT OF STOCK INDEFINITELY!SIDEART SET $ 0Call 512-447-8888 for info
17 0935-00906-0100 KICK PLATE 23 inches longKICK PLATE $ 18Call 512-447-8888 for info
18 A0907-00008-0000 LOCK 7/8" barrel with 2 keys and short cam. Pac-man uses two, one on the front and one on the rear door. Coin games do NOT use keyed-alike locks; the tech can open the rear door for service and not have the coin box keyÉLOCK + KEYS $ 14
19 A084-91415-B617 PAC-MAN - DIAGNOSTIC AND REPAIR PROGRAM - Read more: www.Twobits.com/ABCDIAGNOSTIC + REPAIR KIT $ 99
20 0000-00000-0000 PAC-MEND EDGE CONNECTOR REPAIR KIT - Replaces the burned edge connectors on your GAME BOARD and WIRING HARNESSPAC-MEND - EDGE CONNECTOR REPAIR KIT $ 39
21 0017-00003-0187 SPEAKER 6 X 9 inches, 8 Ohm, 9 Watt minSpeaker $ 24
22 0869-00907-0000 T.V. PLEXI-GLASS (GRAYLITE #31) 17-3/8 X 13-1/4TINTED PLEXI SUNSHIELD $ 25
23 0017-00009-0477 COIN BOX - MOLDED black plastic insert to hold all those quarters. Measures 9 1/2" by 7" at the top and 5" tall.Coin box $ 22Call 512-447-8888 for info
24 NEW ITEM $ 0Call 512-447-8888 for info
