twobits Interactive Catalog

Click on the schematic to view parts information.

call for availability 512-447-8888
click an item
Click on the schematic to view parts information.

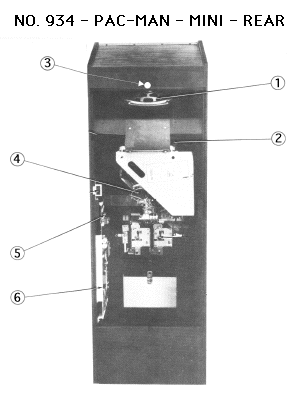

Pac-man - mini cabinet - rear view - parts list

ITEMBally / Midway
part number
DescriptionImagePriceadd to cart
1 A762-00028-0000 SPEAKER 6 X 9 inches, 8 Ohm, 9 WattSPEAKER $ 24
2 0934-00902-00XF MAIN VIEWING GLASS - MONITOR BEZEL - COLOR GRAPHICS ON THE INSIDE OF TEMPERED GLASS - 17 7/8" wide x 15 5/8" highGLASS BEZEL $ 159
3 A151-00029-0000 LOCK 7/8" barrel with 2 keys and short cam. 2 required; one for the coin door, one for the back door.LOCK + KEYS $ 14
4 0017-00003-0340 WELLS GARDNER 13" MONITOR Complete dual sync RGB TV MONITOR, picture tube, circuit boards and metal chasis. Modified to plug right into your original game's wiring harness. Easy do-it-yourself installation. OUT OF STOCK: DUE TO THE WORLD-WIDE AGREEMENT TO CEASE PRODUCTION OF LEADED GLASS PICTURE TUBES WE ARE NOT ABLE TO PROVIDE MONITORS AT THIS TIME. WE HOPE TO HAVE AN LCD VERSION AVAILABLE IN THE NEAR FUTURE.TV MONITOR - COMPLETE $ 329Call 512-447-8888 for info
5 A084-91415-B617 AUXILLIARY CIRCUIT BOARD ASSY. - DIAGNOSTIC AND REPAIR PROGRAM with NEW RIBBON CABLEDIAGNOSTIC + REPAIR KIT $ 99
6 A082-91375-B000 GAME BOARD complete; for PAC-MAN or Ms. Pacman; you name the game!GAME BOARD $ 400
7 0000-00000-0000 FUSES and FUSE HOLDERS - set of two holders and all fusesFUSES & FUSEHOLDERS $ 29
8 0017-00009-0393 BLACK SPEAKER GRILLE W/SLOTS includes 4 black anodized corner bolts and KEP nuts. 5 1/2" x 9"SPEAKER GRILLE $ 18
9 0000-00000-0000 PAC-MEND EDGE CONNECTOR REPAIR KIT - Replaces the burned edge connectors on your GAME BOARD and WIRING HARNESSPAC-MEND - EDGE CONNECTOR REPAIR KIT $ 39
10 A775-00013-0000 FAN - Ball bearing, 115 volt, 4.7" square x 1.5" with solder terminals, internal thermal protectionCOOLING FAN $ 21
11 NEW ITEM $ 0Call 512-447-8888 for info
