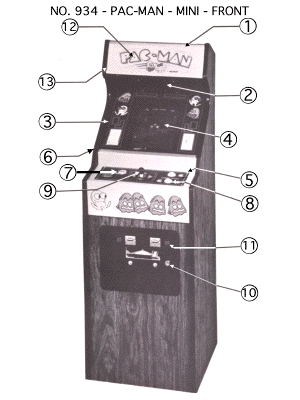

Pac-man - mini cabinet - front view - parts list

ITEMBally / Midway
part number
DescriptionImagePriceadd to cart

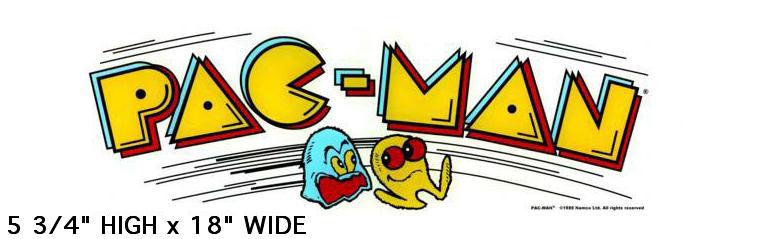

1 0934-00900-00XF DECORATIVE HEADER PLEXIGLASS MARQUEE 5 3/4" x 18" Silkscreened on flat PlexiglassHEADER MARQUEE $ 49
2 0017-00009-0393 BLACK SPEAKER GRILLE W/SLOTS includes 4 black anodized corner bolts and KEP nuts. 5 1/2" x 9"SPEAKER GRILLE $ 18
3 0934-00902-00XF MAIN VIEWING GLASS - MONITOR BEZEL - COLOR GRAPHICS ON THE INSIDE OF TEMPERED GLASS - 17 7/8" wide x 15 5/8" highMAIN GLASS BEZEL $ 159
4 0017-00003-0340 WELLS GARDNER 13" MONITOR Complete dual sync RGB TV MONITOR, picture tube, circuit boards and metal chasis. Modified to plug right into your original game's wiring harness. Easy do-it-yourself installation. OUT OF STOCK: DUE TO THE WORLD-WIDE AGREEMENT TO CEASE PRODUCTION OF LEADED GLASS PICTURE TUBES WE ARE NOT ABLE TO PROVIDE MONITORS AT THIS TIME. WE HOPE TO HAVE AN LCD VERSION AVAILABLE IN THE NEAR FUTURE.MONITOR - COMPLETE $ 329Call 512-447-8888 for info
5 0000-00000-0000 BOLT KIT for upright control panels. (8) #8 x 32 x 1.25 black oxide finish steel carriage bolts with kep nuts and (4) #6 self tapping corner screws.BOLT KIT $ 4
6 0000-00000-0000 BLACK PLASTIC TEE MOLDING approx. 20 ft, 3/4 inch wide Enough BLACK tee molding to replace the original strips on both sides.TEE MOLDING $ 25

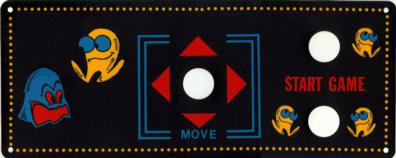

7 0934-00904-0000 CONTROL SHELF DECORATIVE OVERLAY 6 3/8" high x 15 3/4" wide with all holes pre-punched. Silk-screened inks on the inside of a polycarbonate sheet. Super peel and stick glue.DECORATIVE OVERLAY $ 39
8 0017-00042-0250 PUSH BUTTON ASSY. — WHITE (1 PAIR) Player 1 and Player 2 START-A-GAME buttons. Includes huge PAL nuts.START BUTTONS $ 10
9 A595-00005-0000 CONTROL ASSY / JOYSTICK Engineered to look and feel just like the original. The right size red ball, the right height off the panel, correct throw from side to side with top quality micro switches and spade connectors.JOYSTICK $ 39
10 A151-00029-0000 LOCK 7/8" barrel with 2 keys and short cam. 2 required; one for the coin door, one for the back door.LOCK + KEYS $ 14
11 0017-00003-0219 #194 BULBS - 14 volt wedge base BULBS (7 used) Used in header and in coin door. Box of 10BULBS - box of 10 $ 8
12 0017-00003-0219 #194 BULBS - 14 volt wedge base BULBS (7 used) Used in header and in coin door. Box of 10BULBS - box of 10 $ 8
13 0537-00903-0057 GLASS CHANNEL 5 1/4" LONG (1 PAIR)CHANNELS $ 4
14 A762-00028-0000 SPEAKER 6 X 9 inches, 8 Ohm, 9 WattSPEAKER $ 24
15 A084-91415-B617 AUXILLIARY CIRCUIT BOARD ASSY. - DIAGNOSTIC AND REPAIR PROGRAM with NEW RIBBON CABLEDIAGNOSTIC + REPAIR KIT $ 99
16 0000-00000-0000 PAC-MEND EDGE CONNECTOR REPAIR KIT - Replaces the burned edge connectors on your GAME BOARD and WIRING HARNESSPAC-MEND - EDGE CONNECTOR REPAIR KIT $ 39
17 NEW ITEM $ 0Call 512-447-8888 for info
