Pac-man - cocktail cabinet - out view - parts list

ITEMBally / Midway
part number
DescriptionImagePriceadd to cart
1 0017-00003-0339 19 INCH LCD COLOR RGB MONITOR - Complete display replaces the original picture tube, circuit boards and metal chassis in your cocktail table cabinet. Modified to plug right into your original game's wiring harness which makes for an easy do-it-yourself installation. Read more here:
http://Twobits.com/Monitors/
LCD MONITOR - COMPLETE $ 389

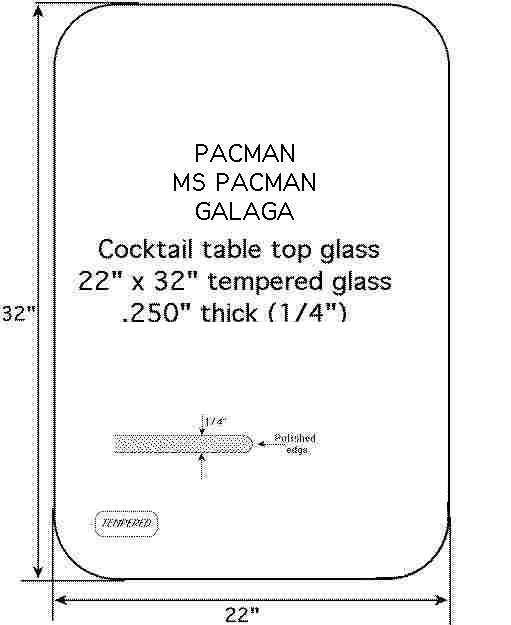

2 0933-00900-00XF TOP GLASS - HEAVY 1/4" thick 22" x 32" clear tempered glass with rounded corners and polished edges. NOTE: SHIPS IN A CUSTOM DOUBLE WALLED LINED CARTON.TOP GLASS 22 x 32 clear $ 129
3 0000-00000-0000 BLACK PLASTIC TEE MOLDING approx. 10 ft, 3/4 inch and 10" of 1" wide. TRIM for top and all sides.TEE MOLDING $ 25
4 0775-00104-00XF CLIPS set of 8 glass hold down clips. 1 1/4" opening. Black powder coat steel.HOLD DOWN CLIPS (8) $ 39
5 0000-00000-0000 DECORATIVE GRAPHIC UNDERLAY - 22 x 32 Silk-screened inks on the underside of a polycarbonate sheet. Replaces graphics-on-glass from original design. Place under clear topglass (Part # CTG)GRAPHIC UNDERLAY $ 49
6 0921-00903-0000 MILKY PLEXIGLASS - pair - 4 1/2 x 11 inches. Mounts behind joystick: allows lights to shine on player's hand.MILKY PLEXIGLASS - pair $ 12
7 A595-00005-0000 CONTROL ASSY / JOYSTICK 2 REQUIRED - Engineered to look and feel just like the original. The right size red ball, the right height off the panel, correct throw from side to side with top quality micro switches.JOYSTICK - 2 required $ 39
8 0933-00901-0000 + 0933-00901-0100 CONTROL SHELF DECORATIVE OVERLAYS - pair 11" wide - peel and stickOVERLAYS - pair $ 49
9 0017-00032-0051 START BUTTONS - pair One player and Two player start buttons. Includes mounting hardware.START BUTTONS - pair $ 12
10 0000-00000-0000 BOLT KIT for 2 cocktail table control panels. (8) #8 x 32 x 1/2 steel carriage bolts with kep nuts and (8) #6 self-tapping phillips head screws; all in black oxide finish.BOLT KIT $ 4
11 0933-00100-00XF CONTROL SHELF pair. 11 inch Metal control panels, black powder coat, all holes drilled. Does NOT include graphic overlays.METAL PANELS (2) $ 60Call 512-447-8888 for info
12 A097-00001-0000 LOCK 7/8" barrel with 2 keys and short cam.LOCK $ 14
13 0017-00009-0393 BLACK SPEAKER GRILLE W/SLOTS includes 4 black anodized corner bolts and KEP nuts. 5 1/2" x 9"GRILLE $ 18
14 0017-00003-0187 SPEAKER 6 X 9 inches, 8 Ohm, 9 WattSPEAKER $ 24
15 0017-00003-0219 #194 BULBS - 14 volt wedge base BULBS (6 used) Used behind joysticks and in coin door.BULBS - box of 10 $ 8
16 A084-91415-B617 PAC-MAN - DIAGNOSTIC AND REPAIR PROGRAMDIAGNOSTIC + REPAIR KIT $ 99
17 0000-00000-0000 PAC-MEND EDGE CONNECTOR REPAIR KIT - Replaces the burned edge connectors on your GAME BOARD and WIRING HARNESSPAC-MEND - EDGE CONNECTOR REPAIR KIT $ 39
18 NEW ITEM $ 0Call 512-447-8888 for info
