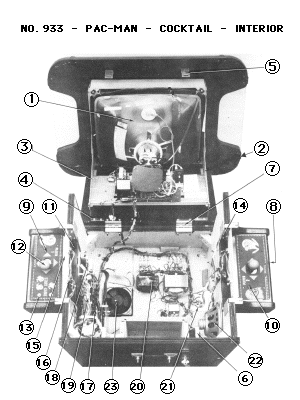

Pac-man - cocktail cabinet - in view - parts list

ITEMBally / Midway
part number
DescriptionImagePriceadd to cart
1 0017-00003-0339 19 INCH LCD COLOR RGB MONITOR - Complete display replaces the original picture tube, circuit boards and metal chassis in your cocktail table cabinet. Modified to plug right into your original game's wiring harness which makes for an easy do-it-yourself installation. Read more here:
http://Twobits.com/Monitors/
LCD MONITOR - COMPLETE $ 389
2 0775-00104-00XF CLIPS set of 8 glass hold down clips. 1 1/4" opening. Black powder coat steel.HOLD DOWN CLIPS (8) $ 39
3 0869-00902-0000 BLACK PLASTIC C.R.T. BEZEL Fits around your 19 inch monitor to block any light getting around the picture tube. PLEASE NOTE: Freight charges on this item may exceed it's value. You should only purchase it along with a tempered upright glass bezel. ALSO: This item is NOT REQUIRED if you replace the original CRT monitor in your game with the flat screen LCD monitor listed above.PLASTIC BEZEL $ 49
4 0927-00101-00XF SUPPORT ANGLESUPPORT ANGLE $ 0
5 0610-00132-00ZN STRIKE for snap latch - PAIR - long style for cocktail tablesSTRIKE FOR LATCH $ 8
6 0017-00009-0033 LATCH - pair of BASSICK CLAMP type snap latches. Mates to your strike bracket to hold down the top of the game.LATCH CLAMP $ 18
7 0017-00009-0514 HINGEHINGE $ 0

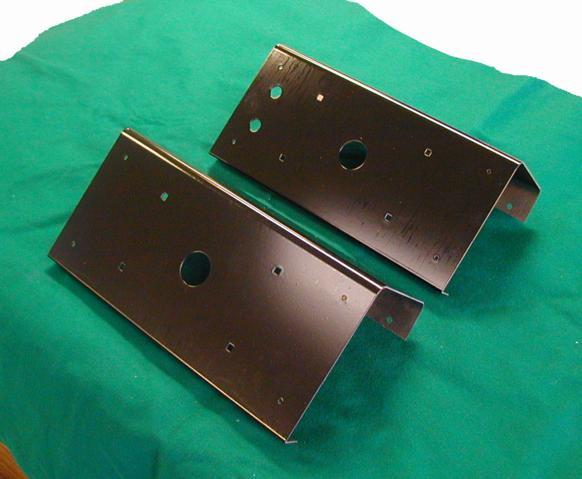

8 0933-00100-00XF CONTROL SHELF pair. 11 inch Metal control panels, black powder coat, all holes drilled. Does NOT include graphic overlays.METAL PANELS (2) $ 60Call 512-447-8888 for info

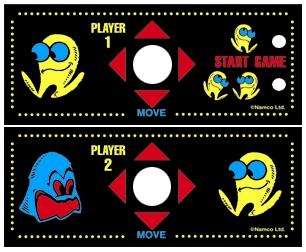

9 0933-00901-0000 +01X CONTROL SHELF DECORATIVE OVERLAYS - pair - 11 inches wide with all holes pre-punched. Silk-screened inks on the inside of a polycarbonate sheet. Super peel and stick glue. Identical to original in every way. Manufactured under license from NAMCO.GRAPHIC OVERLAYS - pair $ 49
10 0932-00902-0000 GROMMET Centering rubber inside your original joystick. Restores original feel to sloppy joysticks; make the stick return to center crisplyGROMMET inside joystick $ 18
11 0017-00003-0219 #194 BULBS - 14 volt wedge base BULBS (6 used) Used behind joysticks and in coin door.BULBS - box of 10 $ 8
12 A933-00005-0000 CONTROL ASSY / JOYSTICK 2 REQUIRED - Engineered to look and feel just like the original. The right size red ball, the right height off the panel, correct throw from side to side with top quality micro switches and 1/4 inch spade connectors.JOYSTICK $ 39
13 0017-00032-0051 START BUTTONS - pair One player and Two player start buttons. Includes mounting hardware.START BUTTONS - pair $ 12
14 0000-00000-0000 BLACK PLASTIC TEE MOLDING approx. 10 ft, 3/4 inch and 10' of 1" wide. TRIM for top and all sides.TEE MOLDING $ 25

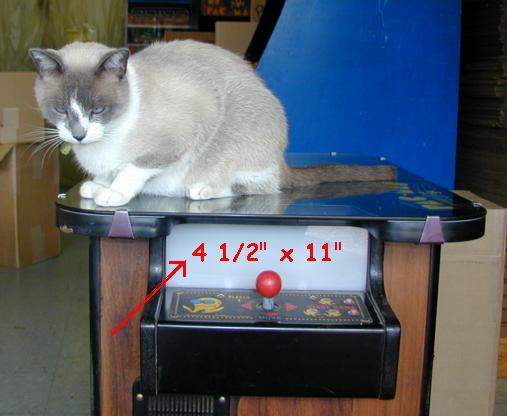

15 0921-00903-0000 MILKY PLEXIGLASS - pair - 4 1/2 x 11 inches. Mounts behind joystick: allows lights to shine on player's hand.MILKY PLEXIGLASS - pair $ 12
16 A084-91375-A595 GAME BOARD complete; PAC-MAN or Ms. Pacman; you name the game!GAME BOARD $ 400
17 0000-00000-0000 FUSES and FUSE HOLDERS - set of two holders and all fusesFUSES & FUSEHOLDERS $ 29
18 A084-91415-B617 AUXILLIARY CIRCUIT BOARD ASSY. - DIAGNOSTIC AND REPAIR PROGRAM with NEW RIBBON CABLEDIAGNOSTIC + REPAIR KIT $ 99
19 A933-00006-0000 WIRING HARNESS Edge connector which mates GAME BOARD with 6 ' of wire on every pin. Color matched to original harness.WIRING HARNESS $ 35Call 512-447-8888 for info
20 MT00-00080-0000 + MT00-00082-0000 TRANSFORMER - CALL FOR AVAILABILITYTRANSFORMER - CALL FOR AVAILABILITY $ 0
21 0017-00032-0083 ON - OFF SWITCHON - OFF SWITCH $ 0
22 0017-00003-0187 SPEAKER 6 X 9 inches, 8 Ohm, 9 WattSPEAKER $ 24
23 0017-00003-0222 FAN - Ball bearing, 115 volt, 4.7" square x 1.5" with solder terminals, internal thermal protectionCOOLING FAN $ 21
24 0017-00009-0393 BLACK SPEAKER GRILLE W/SLOTS includes 4 black anodized corner bolts and KEP nuts. 5 1/2" x 9"SPEAKER GRILLE $ 18
25 0000-00000-0000 PAC-MEND EDGE CONNECTOR REPAIR KIT - Replaces the burned edge connectors on your GAME BOARD and WIRING HARNESSPAC-MEND - EDGE CONNECTOR REPAIR KIT $ 39
26 NEW ITEM $ 0Call 512-447-8888 for info
