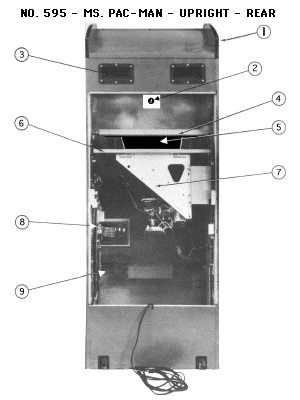

Ms.Pac-man - upright cabinet - rear view - parts list

ITEM	Bally / Midway part number	Description	Image	Price	add to cart
1	0000-00000-0000	BLACK PLASTIC TEE MOLDING approx. 20 ft, 3/4 inch wide Enough BLACK tee molding to replace the original strips on both sides of any full-size upright video game cabinet		$ 25
2	A0907-00008-0000	LOCK 7/8" barrel with 2 keys and short cam.		$ 14
3	0894-00916-0000	HAND LIFT		$ 0
4	0595-009000-00XF	MAIN VIEWING GLASS - MONITOR BEZEL - SILK SCREENED GRAPHICS ON TEMPERED GLASS - 21 inches high x 23 inches wide		$ 179
5	0508-00900-0000	BLACK PLASTIC C.R.T. BEZEL Fits around your 19 inch monitor to block any light getting around the picture tube.		$ 30
6	0508-00106-0000	METAL MONITOR BRACKETS		$ 0
7	0017-00003-0401	19 INCH LCD COLOR RGB MONITOR - Complete display replaces the original picture tube, circuit boards and metal chassis in your full size upright cabinet. Modified to plug right into your original game's wiring harness which makes for an easy do-it-yourself installation. Read more here: http://Twobits.com/Monitors/		$ 389
8	A084-91375-A595	GAME BOARD complete; PAC-MAN or Ms. Pacman; you name the game!		$ 400
9	0000-00000-0000	FUSES and FUSE HOLDERS - set of (two) four position fuse holders and all the fuses		$ 29
10	A084-91415-B617	AUXILIARY CIRCUIT BOARD ASSY. - DIAGNOSTIC AND REPAIR PROGRAM with NEW RIBBON CABLE		$ 99
11	0000-00000-0000	PAC-MEND EDGE CONNECTOR REPAIR KIT - Replaces the burned edge connectors on your GAME BOARD and WIRING HARNESS		$ 39
12	0950-00900-0000	COIN BOX - MOLDED black plastic insert to hold all those quarters. Measures 9 1/2" by 7" at the top and 5" tall.		$ 22
13	0017-00009-0033	LATCH - pair of BASSICK CLAMP type snap latches. Mates to your strike bracket to hold down the control panel.		$ 18
14	0610-00132-00ZN	STRIKE for snap latch - PAIR - short style for upright cabinets		$ 8
15	A775-00013-0000	FAN - Ball bearing, 115 volt, 4.7" square x 1.5" with solder terminals, internal thermal protection		$ 21
16	SABC_16_in_1_KIT	SUPER ABC KIT - 16 GAME KIT for PAC-MAN or Ms. PAC-MAN. This plug-in kit allows you to play PAC-MAN, Ms. PAC-MAN, PAC ATTACK, PACMAN PLUS, ULTRA PACMAN, PIRANHA and others. No soldering required; this circuit board plugs into the existing sockets of your original game board. Play original or speed-up versions of every game. Includes a buy-in feature and high score table you can enter your initials into. Fully coin-op compatible. Read more at http://www.Twobits.com/16		$ 289
