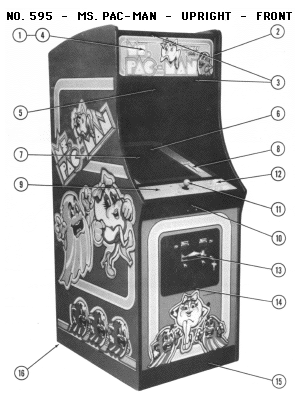

Ms.Pac-man - upright cabinet - front view - parts list

ITEMBally / Midway
part number
DescriptionImagePriceadd to cart
1 0595-00901-00XF DECORATIVE HEADER PLEXIGLASS MARQUEE 9" X 23" Silk-screened graphics on the inside of the plexiglass. Perfect fit in your Ms. Pac-man upright cabinet.HEADER MARQUEE $ 49
2 0537-00903-0057 GLASS CHANNEL 12" long, 1 pair of 3/16" and 1 pair of 1/4". Decorative slip on pieces for both side edges of your marquee. Enough to trim any game marquee.SIDE CHANNELS $ 4

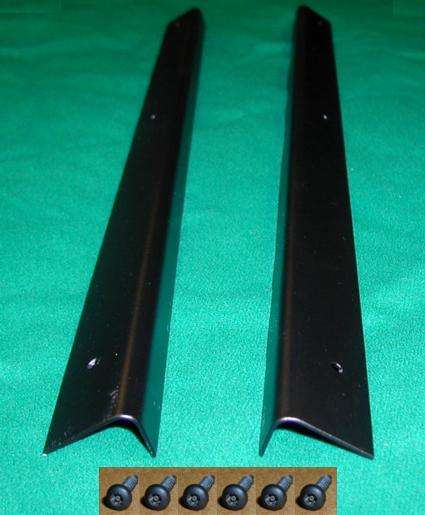

3 0508-00104-00XF UPPER/LOWER HEADER RETAINER (1 PAIR) Includes 6 TORX screws. OUT OF STOCK; NO PLANS TO REMAKE THESE, SORRY.MARQUEE BRACKETS $ 19Call 512-447-8888 for info
4 0000-00000-0000 BLACK PLASTIC TEE MOLDING approx. 20 ft, 3/4 inch wide Enough BLACK tee molding to replace the original strips on both sides your Ms. Pac-man upright cabinetTEE MOLDING $ 25
5 0017-00009-0393 BLACK SPEAKER GRILLE W/SLOTS includes 4 black anodized corner bolts and KEP nuts with integral lock washers. 5 1/2" x 9" with holes drilled to perfectly match our 6" x 9" speakerSPEAKER GRILLE $ 18
6 0508-00900-0000 BLACK PLASTIC C.R.T. BEZEL Fits around your 19 inch monitor to block any light getting around the picture tube. PLEASE NOTE: Freight charges on this item may exceed it's value. You should only purchase it along with a tempered upright glass bezel. ALSO: This item is NOT REQUIRED if you replace the original CRT monitor in your game with the flat screen LCD monitor listed below.PLASTIC BEZEL $ 49

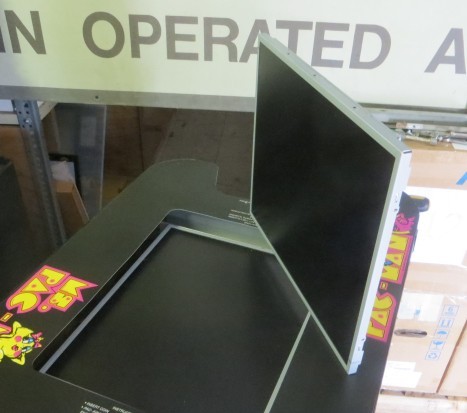

7 0017-00003-0401 19 INCH LCD COLOR RGB MONITOR - Complete display replaces the original picture tube, circuit boards and metal chassis in your full size upright cabinet. Modified to plug right into your original game's wiring harness which makes for an easy do-it-yourself installation. Read more here: http://Twobits.com/Monitors/LCD MONITOR - COMPLETE $ 389
8 0595-009000-00XF MAIN VIEWING GLASS - MONITOR BEZEL - GRAPHICS ON REVERSE OF TEMPERED GLASS - 21 inches high x 23 inches wideGLASS BEZEL W/ GRAPHICS $ 189
9 0595-00903-0000 CONTROL SHELF DECORATIVE OVERLAY 5 inches high by 22 1/4 inches wide with all holes pre-punched. Silk-screened inks on the inside of a polycarbonate sheet. Super peel and stick glue.GRAPHIC OVERLAY $ 39
10 0000-00000-000 BOLT KIT Everything you need to install your new control panel overlay. (8) #8 x 32 x 1.25 black oxide finish steel carriage bolts with kep nuts and (4) #6 self tapping corner screws. Duplicate of originals.BOLT KIT $ 4
11 A595-00005-0000 CONTROL ASSY / JOYSTICK Engineered to look and feel just like the original. The right size red ball, the right height off the panel, correct throw from side to side with top quality micro switches and spade connectors.JOYSTICK $ 39
12 0017-00042-0250 PUSH BUTTON ASSY. — WHITE (1 PAIR) Player 1 and Player 2 START-A-GAME buttons. Includes huge PAL nuts.START BUTTONS $ 10
13 A0907-00008-0000 LOCK 7/8" barrel with 2 keys and short cam. Ms. Pac-man uses two, one on the front and one on the rear door. Coin games do NOT use keyed-alike locks; the tech can open the rear door for service and not have the coin box key…LOCK + KEYS $ 14
14 0000-00000-0000 FRONT GRAPHIC Silk screened inks on heavy white vinyl; just peel and stick. This item is also available as part of the the 3 piece SIDEART set BELOW.FRONT GRAPHIC $ 109
15 0935-00906-0100 KICK PLATE 23 inches longKICK PLATE $ 18Call 512-447-8888 for info
16 0000-00000-0000 3 piece GRAPHIC SET - Both sides plus the FRONT. Silk screened inks on heavy white vinyl; just peel and stick.SIDEART SET $ 299
17 0017-00003-0219 #194 BULBS - 14 volt wedge base BULBS - Used in coin door. Box of 10#194 BULBS - box of 10 $ 8
18 A084-91415-B617 AUXILLIARY CIRCUIT BOARD ASSY. - DIAGNOSTIC AND REPAIR PROGRAM with NEW RIBBON CABLEDIAGNOSTIC + REPAIR KIT $ 99
19 0000-00000-0000 PAC-MEND EDGE CONNECTOR REPAIR KIT - Replaces the burned edge connectors on your GAME BOARD and WIRING HARNESSPAC-MEND - EDGE CONNECTOR REPAIR KIT $ 39

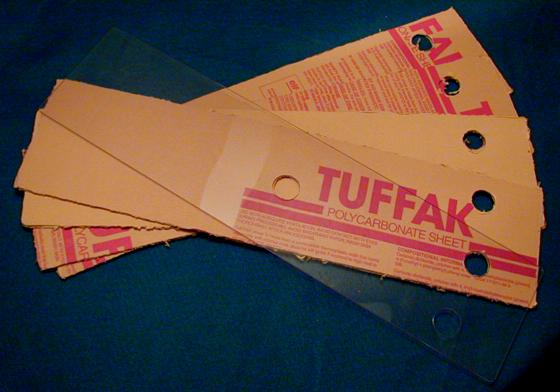

20 0000-00000-0000 CONTROL PANEL PROTECTIVE COVER Clear polycarbonate. MACHINED from plexiglas sheet with rounded corners and pre-drilled holes for the buttons and joystick only. Fits UPRIGHT CABINET PAC-MAN or Ms.PAC-MAN control panelsCONTROL PANEL PROTECTIVE COVER $ 20
21 0000-00000-0000 40 PIN FLAT RIBBON CABLE runs between the main game board socket at 6B and the auxilliary game board.40 PIN FLAT RIBBON CABLE $ 12
22 A082-91384-B000 284 MODULE - VIDEO RAM ADDRESSER circuit board NEW. Installs into the main game board socket at 5S. Includes 28 pin sacrificial socket on bottom.284 MODULE - VIDEO RAM ADDRESSER card $ 39

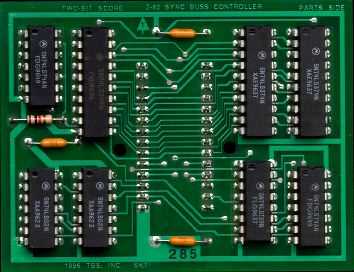

23 A082-91383-B000 285 MODULE - Z80 SYNC BUS CONTROLLER circuit board NEW. Installs into the main game board socket at 6D. Includes 28 pin sacrificial socket on bottom.Z-80 Synch bus controller card $ 39
24 Z80 Z-80 PROCESSOR CHIP 40 PIN DIP PACKAGE Installs into the main socket on the Auxilliary board.Z80 PROCESSOR 40 pin CHIP $ 10
25 78GVIC / 78GU1C 78GU1C - VOLTAGE REGULATOR four pin - 78GUIC78GU1C 4 PIN VOLTAGE REGULATOR $ 18
26 0000-00000-0000 <a href="http://www.twobits.com/parts/parts10.html" target="_blank">OTHER CHIPS - Click here</a> to see the list of all integrated circuit chips we carry.OTHER CHIPS $ 0
27 A739-00016-0000 LEAF SWITCHES Mount under the Player 1 and Player 2 START-A-GAME buttons on all UPRIGHT games.LEAF SWITCHES - 1 PAIR $ 15
28 0932-00902-0000 GROMMET Joystick grommet fits original large metal BALLY / MIDWAY PAC-MAN and MS. PACMAN joystick assemblies. Restores original feel to sloppy joysticks; make the stick return to center crisply.Also fits: Burger Time Bosconian Gorf cocktail Galaga 3 Gaplus Timber Tapper Root beer Tapper Rally X Solar Fox Wizard of Wor and many other BALLY/MIDWAY games. Check the dimensions to be sure before ordering!JOYSTICK CENTERING GROMMET $ 18

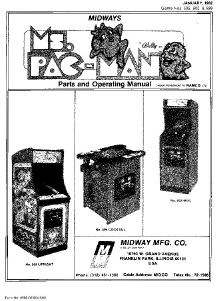

29 0932-00300-0000 PARTS and OPERATORS MANUAL / SHOP MANUAL Bound copy of the original owner's manual with full schematics and troubleshooting.PARTS and OPERATORS MANUAL $ 25Call 512-447-8888 for info
30 0950-00900-0000 COIN BOX - MOLDED black plastic insert to hold all those quarters. Measures 9 1/2" by 7" at the top and 5" tall.Coin box $ 22Call 512-447-8888 for info
31 0869-00907-0000 T.V. PLEXI-GLASS (GRAYLITE #31) 17-3/8 X 13-1/4TINTED SUNLIGHT SHIELD $ 25
