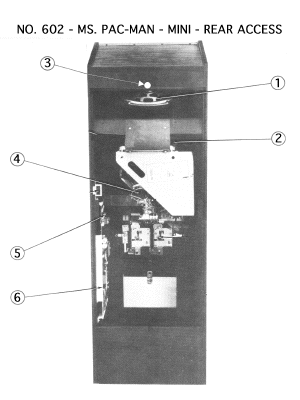

Ms.Pac-man - mini cabinet - rear view - parts list

ITEMBally / Midway
part number
DescriptionImagePriceadd to cart
4 0017-00003-0369 WELLS GARDNER 13" DUAL SYNC COLOR MONITOR Complete RGB MONITOR, picture tube, circuit boards and metal chasis. Wiring harness modified to plug into your original game harness.TV MONITOR $ 299
2 0602-00900-00XF MAIN VIEWING GLASS - MONITOR BEZEL - SILK SCREENED GRAPHICS ON TEMPERED GLASS - 17 3/4" wide x 14 3/4" highGLASS BEZEL $ 99
3 A0907-00008-0000 LOCK 7/8" barrel with 2 keys and short cam. Ms. Pac-man cabaret uses two, one on the front and one on the rear door.LOCK & KEYS $ 12
1 0017-00003-0259 SPEAKER 6 X 9 inches, 8 Ohm, 7 WattSPEAKER $ 24
5 A084-91375-A595 GAME BOARD complete; PAC-MAN or Ms. Pacman; you name the game!GAME BOARD $ 400
6 0720-00001-0400 FUSES and FUSE HOLDERS - set of two holders and all the fuses mounted on the cabinet floor.FUSES & FUSEHOLDERS $ 29
7 A084-91415-B617 AUXILLIARY CIRCUIT BOARD ASSY. - DIAGNOSTIC AND REPAIR PROGRAM with NEW RIBBON CABLEDIAGNOSTIC + REPAIR KIT $ 99
8 0000-00000-0000 PAC-MEND EDGE CONNECTOR REPAIR KIT - Replaces the burned edge connectors on your GAME BOARD and WIRING HARNESSPAC-MEND - EDGE CONNECTOR REPAIR KIT $ 39
9 0950-00900-0000 COIN BOX - MOLDED black plastic insert to hold all those quarters. Measures 9 1/2" by 7" at the top and 5" tall.Coin box $ 22
