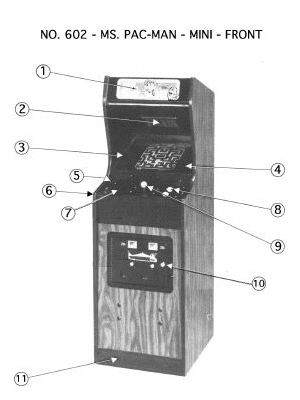

Ms.Pac-man - mini cabinet - front view - parts list

ITEMBally / Midway
part number		DescriptionImagePriceadd to cart

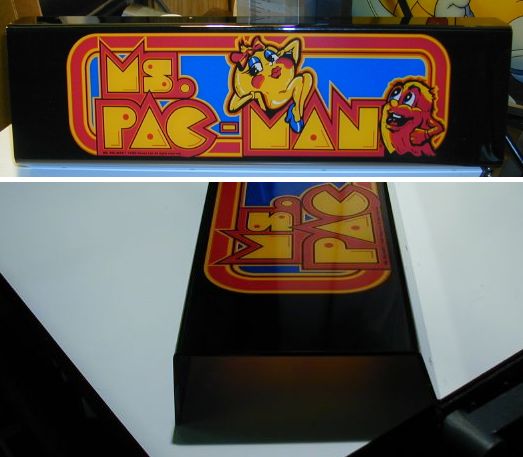

1 0602-00901-00XF DISPLAY PANEL - HEADER MARQUEE plexiglas header with graphic - bent to three sided shape to fit cabinet. Mounting holes are pre-drilled. 18" wide, 5" high with 2" wings on the top and bottom.Ms.Pac-man MINI CABARET header marquee $ 79
2 0017-00009-0393 BLACK SPEAKER GRILLE W/SLOTS includes 4 black anodized corner bolts and KEP nuts. 5 1/2" x 9"SPEAKER GRILLE $ 18
3 0602-00900-00XF MAIN VIEWING GLASS - MONITOR BEZEL - SILK SCREENED GRAPHICS ON TEMPERED GLASS - 17 3/4" wide x 14 3/4" highGLASS BEZEL $ 99
4 0017-00003-0369 WELLS GARDNER 13" DUAL SYNC COLOR MONITOR Complete RGB MONITOR, picture tube, circuit boards and metal chasis. Modified to plug into your original game harness.TV MONITOR $ 299
5 0000-00000-0000 BOLT KIT for upright control panels. (8) #8 x 32 x 1.25 black oxide finish steel carriage bolts with kep nuts and (4) #6 self tapping corner screws.BOLT KIT $ 4
6 0000-00000-0000 BLACK PLASTIC TEE MOLDING approx. 20 ft, 3/4 inch wide Enough BLACK tee molding to replace the original strips on both sides of your cabaret video game cabinetTEE MOLDING $ 25

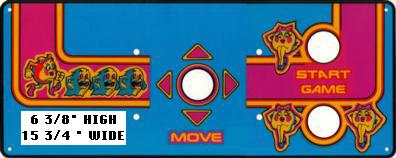

7 00602-00902-0000 CONTROL SHELF DECORATIVE OVERLAY 6 3/8" high x 15 3/4" wide with all holes pre-punched. Silk-screened inks on the inside of a polycarbonate sheet. Super peel and stick glue. Identical to original in every way. Manufactured under license from NAMCO.OVERLAY $ 39
8 0017-00042-0260 PUSH BUTTON ASSY. — WHITE (1 PAIR) Player 1 and Player 2 START-A-GAME buttons. Includes huge PAL nuts.BUTTONS $ 10
9 A595-00005-0000 CONTROL ASSY / COMPETITION JOYSTICK - Engineered to look and feel just like the original. The right size red ball, the right height off the panel, correct throw from side to side with top quality micro switches and 1/4 inch spade connectors. Bolts right up to your original control panel with no cutting or drilling.JOYSTICK COMPLETE $ 39
10 A0907-00008-0000 LOCK 7/8" barrel with 2 keys and short cam. Ms. Pac-man cabaret uses two, one on the front and one on the rear door.LOCK $ 12
11 0935-00906-0100 KICK PLATE 18 inches longKICK PLATE $ 18
12 0017-00003-0259 SPEAKER 6 X 9 inches, 8 Ohm, 7 WattSPEAKER $ 24
13 0017-00003-0219 #194 BULBS - 14 volt wedge base BULBS - Box of 10#194 BULBS - box of 10 $ 8
14 A084-91415-B617 AUXILLIARY CIRCUIT BOARD ASSY. - DIAGNOSTIC AND REPAIR PROGRAM with NEW RIBBON CABLEDIAGNOSTIC + REPAIR KIT $ 99
15 0000-00000-0000 PAC-MEND EDGE CONNECTOR REPAIR KIT - Replaces the burned edge connectors on your GAME BOARD and WIRING HARNESSPAC-MEND - EDGE CONNECTOR REPAIR KIT $ 39
16 0950-00900-0000 COIN BOX - MOLDED black plastic insert to hold all those quarters. Measures 9 1/2" by 7" at the top and 5" tall.Coin box $ 22
