twobits Interactive Catalog

Click on the schematic to view parts information.

call for availability 512-447-8888
click an item
Click on the schematic to view parts information.

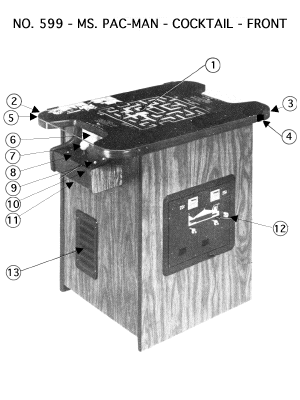

Ms.Pac-man - cocktail cabinet - out view - parts list

ITEMBally / Midway
part number
DescriptionImagePriceadd to cart
1 0017-00003-0339 19 INCH LCD COLOR RGB MONITOR - Complete display replaces the original picture tube, circuit boards and metal chassis in your cocktail table cabinet. Modified to plug right into your original game's wiring harness which makes for an easy do-it-yourself installation. Read more here:
http://Twobits.com/Monitors/
LCD MONITOR - COMPLETE $ 389
2 0017-00009-0499 TOP GLASS - HEAVY 1/4" thick 22" x 32" clear tempered glass with rounded corners and polished edges. NOTE: SHIPS IN A CUSTOM DOUBLE WALLED LINED CARTON.TOP GLASS 22 x 32 - TEMPERED - CLEAR $ 129
3 0000-00000-0000 BLACK PLASTIC TEE MOLDING approx. 10 foot of 3/4 inch and 10 foot of 1 inch wide. You cut to length for top and all sides.TEE MOLDING $ 25
4 0775-00104-00XF CLIPS set of 8 glass hold down clips. 1 + 1/4" opening. Black powder coat steel.HOLD DOWN CLIPS (8) $ 39
5 0599-00901-0000 DECORATIVE GRAPHIC UNDERLAY 22 x 32 Silk-screened inks on the inside of a polycarbonate sheet.GRAPHIC UNDERLAY $ 49
6 0930-00904-0000 MILKY PLEXIGLASS LIGHT SHIELD - pair - 3 x 9 inches. Mounts behind joystick: allows lights to shine on player's hand.MILKY PLEXIGLASS - pair $ 10
7 A595-00005-0000 CONTROL ASSY / COMPETITION JOYSTICK - Engineered to look and feel just like the original. The right size red ball, the right height off the panel, correct throw from side to side with top quality micro switches and spade connectors. Bolts right up to your original control panel with no cutting or drilling.JOYSTICK COMPLETE $ 39
8 0599-00900-0100 + 200 CONTROL SHELF DECORATIVE OVERLAYS - pair - 9 inches wide with all holes pre-punched. Silk-screened inks on the inside of a polycarbonate sheet. Super peel and stick glue.GRAPHIC OVERLAYS - pair $ 49
9 0017-00032-0051 START BUTTONS - pair One player and Two player start buttons. Includes mounting hardware.START BUTTONS - pair $ 12
10 0000-00000-0000 BOLT KIT for 2 cocktail table control panels. (8) #8 x 32 x 1/2 steel carriage bolts with kep nuts and (8) #6 self-tapping phillips head screws; all in black oxide finish.BOLT KIT $ 4
11 A595-00004-0100 + 200 CONTROL SHELF pair. Complete metal control panels, black powder coat, all holes drilled. Does NOT include graphic overlays.METAL PANELS (2) $ 60Call 512-447-8888 for info
12 A097-00006-0000 LOCK 7/8" barrel with 2 keys and short cam.LOCK + KEYS $ 14
13 0017-00009-0393 BLACK SPEAKER GRILLE W/SLOTS includes 4 black anodized corner bolts and KEP nuts. 5 1/2" x 9"SPEAKER GRILLE $ 18
14 0017-00003-0187 SPEAKER 6 X 9 inches, 8 Ohm, 9 WattSPEAKER $ 24
15 A084-91415-B617 AUXILLIARY CIRCUIT BOARD ASSY. - DIAGNOSTIC AND REPAIR PROGRAM with NEW RIBBON CABLEDIAGNOSTIC + REPAIR KIT $ 99
16 0000-00000-0000 PAC-MEND EDGE CONNECTOR REPAIR KIT - Replaces the burned edge connectors on your GAME BOARD and WIRING HARNESSPAC-MEND - EDGE CONNECTOR REPAIR KIT $ 39
17 NEW ITEM $ 0Call 512-447-8888 for info
