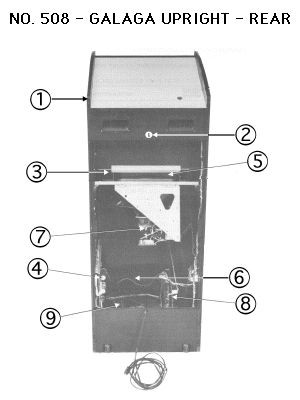

Galaga - upright cabinet - rear view - parts list

ITEMBally / Midway
part number
DescriptionImagePriceadd to cart
1 0000-00000-0000 BLACK PLASTIC TEE MOLDING approx. 20 ft, 3/4 inch wide Enough BLACK tee molding to replace the original strips on both sides of any full-size upright video game cabinetTEE MOLDING $ 25
2 A097-00001-0000 LOCK 7/8" barrel with 2 keys and short cam. 2 requiredLOCK + KEYS $ 14
3 0508-00903-00XF MAIN DISPLAY GLASS - MONITOR BEZEL - GRAPHICS ON THE INSIDE OF TEMPERED GLASS - 21-1/8 HIGH X 23 WIDEMAIN VIEWING GLASS w/ GRAPHICS $ 189
4 A084-91414-C935 POWER SUPPLY Replace the power supply circuit board with a modern switching, regulated power supply.POWER SUPPLY $ 60
5 0508-00900-0000 BLACK PLASTIC C.R.T. BEZEL Fits around your 19 inch monitor to block any light getting around the picture tube. PLEASE NOTE: Freight charges on this item may exceed it's value. You should only purchase it along with a tempered upright glass bezel. ALSO: This item is NOT REQUIRED if you replace the original CRT monitor in your game with the flat screen LCD monitor listed below.PLASTIC BEZEL $ 49
6 0000-00000-0000 GALAGA POWER SUPPLY D.C. CABLE ONLYDC WIRING HARNESS from POWER SUPPLY to GAME BOARD $ 19
7 0017-00003-0401 19 INCH LCD COLOR RGB MONITOR - Complete display replaces the original picture tube, circuit boards and metal chassis in your full size upright cabinet. Modified to plug right into your original game's wiring harness which makes for an easy do-it-yourself installation. Read more here:
http://Twobits.com/Monitors/
LCD MONITOR - COMPLETE $ 389
8 A084-91404-C508 + 91405-B508 GALAGA GAME BOARD - NEWGALAGA GAME BOARD $ 239
9 0000-00000-0000 FUSES and FUSE HOLDERS - set of two holders and all fusesFUSES & FUSEHOLDERS $ 29
10 0017-00009-0033 LATCH - pair of BASSICK CLAMP type snap latches. Mates to your strike bracket to hold down the control panel.Latch $ 18
11 0961-00115-00XF STRIKE for snap latch - PAIR - short style for upright cabinetsSTRIKE FOR LATCH $ 8
12 A775-00013-0000 FAN - Ball bearing, 115 volt, 4.7" square x 1.5" with solder terminals, internal thermal protectionCOOLING FAN $ 21
