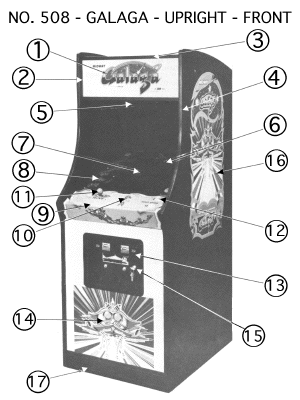

Galaga - upright cabinet - front view - parts list

ITEMBally / Midway
part number
DescriptionImagePriceadd to cart

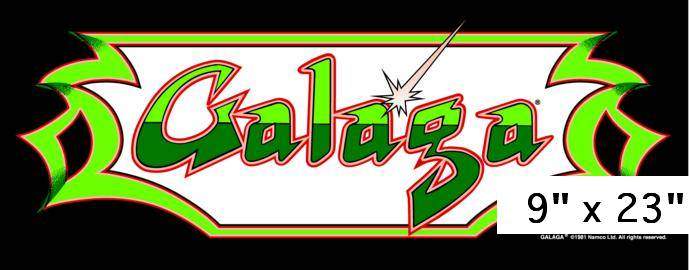

1 0508-00903-00XF DECORATIVE HEADER PLEXIGLASS MARQUEE 23 x 9-1/16 inches. Silk-screened graphics on the inside of the plexiglass. Perfect fit in your GALAGA upright cabinet.MARQUEE $ 49
2 0537-00903-0055 GLASS CHANNEL decorative side edges - 7 + 3/4" LONG (1 PAIR) - You get 2 pieces 3/16" and 2 pieces 1/4" to insure a perfect fit on any marquee. Score and snap to size.GLASS SIDE CHANNELS $ 4
3 0508-00104-00XF UPPER/LOWER HEADER RETAINER (1 PAIR) plus 6 TORX TAMPER RESISTANT SCREWS. OUT OF STOCK; NO PLANS TO REMAKE THESE, SORRY.BRACKETS $ 19Call 512-447-8888 for info
4 0000-00000-0000 BLACK PLASTIC TEE MOLDING approx. 20 ft, 3/4 inch wide Enough BLACK tee molding to replace the original strips on both sides of any full-size upright video game cabinetTEE MOLDING $ 25
5 0017-00009-0393 BLACK SPEAKER GRILLE W/SLOTS includes 4 black anodized corner bolts and KEP nuts. 5 1/2" x 9"SPEAKER GRILLE $ 18
6 0508-00900-0000 BLACK PLASTIC C.R.T. BEZEL 19 INCH PLEASE NOTE: Freight charges on this item may exceed it's value. You should only purchase it along with a tempered upright glass bezel. ALSO: This item is NOT REQUIRED if you replace the original CRT monitor in your game with the flat screen LCD monitor listed below.PLASTIC BEZEL $ 49
7 0017-00003-0401 19 INCH LCD COLOR RGB MONITOR - Complete display replaces the original picture tube, circuit boards and metal chassis in your full size upright cabinet. Modified to plug right into your original game's wiring harness which makes for an easy do-it-yourself installation. Read more here:
http://Twobits.com/Monitors/
LCD MONITOR - COMPLETE $ 389
8 0508-00903-00XF MAIN DISPLAY GLASS - MONITOR BEZEL - SILK SCREENED GRAPHICS on tempered glass - 21" HIGH X 23" WIDEGLASS BEZEL $ 189

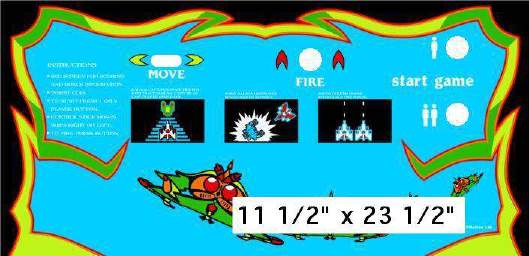

9 0595-00902-00XF CONTROL SHELF DECORATIVE OVERLAY 11 1/2" x 23 1/2" peel and stick. Silk screened graphics on the inside of tough polycarbonate plastic. Duplicate of original with all holes pre-punched. Don't be fooled by inkjet imitations!GRAPHIC OVERLAY $ 39
10 0017-00042-0256 PUSH BUTTON ASSY. RED plastic FIRE button. Includes huge PAL nut.FIRE BUTTON $ 7
11 0000-00000-0000 BOLT KIT Everything you need to install your new control panel overlay. (8) #8 x 32 x 1.25 black oxide finish steel carriage bolts with kep nuts and (4) #6 self tapping corner screws. Duplicate of originals.BOLT KIT $ 4
12 0017-00042-0250 PUSH BUTTON ASSY. Player 1 and Player 2 START-A-GAME plastic buttons. Includes huge PAL nuts. WHITE (1 PAIR)START BUTTONS $ 10
13 0017-00003-0219 #194 BULBS - 14 volt wedge base BULBS - Used in coin door. Box of 10BULBS - box of 10 $ 8
14 0508-00906-0000 DECAL - FRONT GRAPHIC Silk screened inks on heavy white vinyl; just peel and stick. This item is also included in the 3 piece SIDEART set.FRONT GRAPHIC $ 59
15 0000-00000-0000 LOCK 7/8" barrel with 2 keys and short cam. 2 requiredLOCK + KEYS $ 14
16 0508-00904-0000 DECAL - SIDES - 3 piece GRAPHIC SET - Both sides plus the FRONT. Silk screened inks on heavy vinyl; just peel and stick.SIDEART SET $ 179
17 0935-00906-0100 KICK PLATE 23 inches longKICK PLATE $ 18Call 512-447-8888 for info
18 0017-00003-0259 SPEAKER 6 X 9 inches, 8 Ohm, 9 WattSPEAKER $ 24
19 0935-00905-0000 T.V. PLEXI-GLASS (GRAYLITE #31) 17-3/8 X 13-1/4TINTED PLEXI SUNSHIELD $ 25

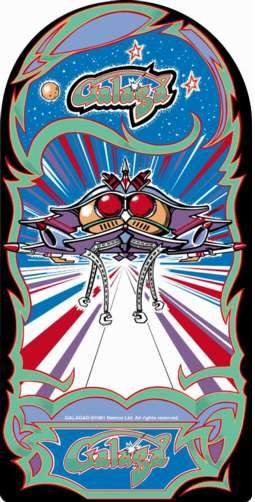

20 0508-00904-0000 DECAL - ONE SIDE ONLY - Silk screened inks on heavy vinyl; just peel and stick on black painted cabinet side. Use for either left or right side of cabinet.Galaga - One side only $ 75
