Click on the schematic to view parts information.

call for availability 512-447-8888
click an item
Click on the schematic to view parts information.

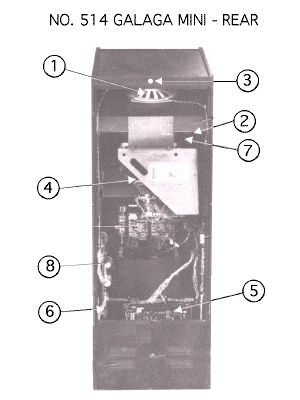

Galaga - mini cabinet - rear view - parts list

ITEMBally / Midway
part number
DescriptionImagePriceadd to cart
1 0017-00003-0259 SPEAKER 6 X 9 inches, 8 Ohm, 7 WattSPEAKER $ 24
2 0514-00900-00XF FRONT GLASSFRONT GLASS - CALL FOR AVAILABILITY $ 0
3 A097-00008-0000 LOCK 7/8" barrel with 2 keys and short cam. 2 requiredLOCK + KEYS $ 14
4 0017-00003-0369 WELLS GARDNER 13" MONITOR Complete RGB MONITOR, picture tube, circuit boards and metal chasis. Modified to plug into your original game harness. OUT OF STOCK: DUE TO THE WORLD-WIDE AGREEMENT TO CEASE PRODUCTION OF LEADED GLASS PICTURE TUBES WE ARE NOT ABLE TO PROVIDE MONITORS AT THIS TIME. WE HOPE TO HAVE AN LCD VERSION AVAILABLE IN THE NEAR FUTURE.TV MONITOR $ 329Call 512-447-8888 for info
5 A084-91404-C508 + 91405-B508 GALAGA GAME BOARD - NEWGALAGA GAME BOARD $ 239
6 0000-00000-0000 POWER SUPPLY D.C. CABLE ONLYDC WIRING HARNESS from PS to GAME BOARD $ 19
7 0000-00000-0000 BLACK PLASTIC C.R.T. BEZEL Fits around your 13 inch monitor to block any light getting around the picture tube.PLASTIC BEZEL $ 0Call 512-447-8888 for info

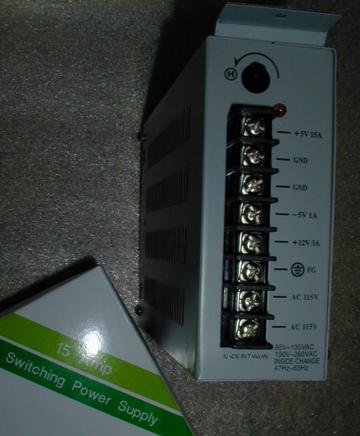

8 A084-91414-C935 POWER SUPPLY Replace the power supply circuit board with a modern switching, regulated power supply.POWER SUPPLY $ 60
9 0000-00000-0000 FUSES and FUSE HOLDERS - set of two holders and all fusesFUSES & FUSEHOLDERS $ 29
10 0017-00009-0393 BLACK SPEAKER GRILLE W/SLOTS includes 4 black anodized corner bolts and KEP nuts. 5 1/2" x 9"SPEAKER GRILLE $ 18
