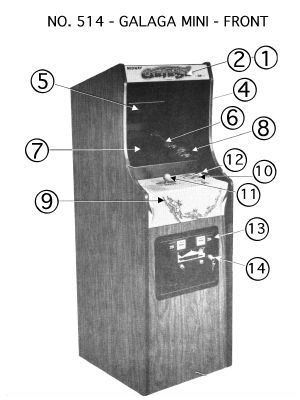

Galaga - mini cabinet - front view - parts list

ITEMBally / Midway
part number
DescriptionImagePriceadd to cart
1 0514-00901-00XF DISPLAY PANEL - HEADER MARQUEE plexiglas header with graphic - bent to three sided shape to fit cabinet. Mounting holes are pre-drilled. 18" wide, 3+1/4" high with 2" wings on the top and bottom. Illuminated from behind.Galaga MINI marquee. $ 79
2 0017-00003-0219 #194 BULBS - 14 volt wedge base BULBS - 5 Used to illuminate the header. Box of 10BULBS - box of 10 $ 8
3 0017-00003-0259 SPEAKER 6 X 9 inches, 8 Ohm, 7 WattSPEAKER $ 24
4 0000-00000-0000 BLACK PLASTIC TEE MOLDING approx. 20 ft, 3/4 inch wide Enough BLACK tee molding to replace the original strips on both sides of any full-size upright video game cabinetTEE MOLDING $ 25

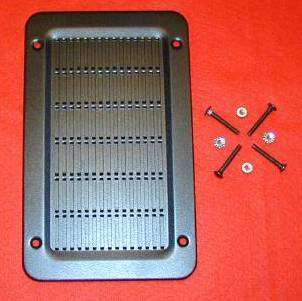

5 0017-00009-0393 BLACK SPEAKER GRILLE W/SLOTS includes 4 black anodized corner bolts and KEP nuts. 5 1/2" x 9"SPEAKER GRILLE $ 18
6 0514-00900-00XF FRONT BEZEL GLASS - OUT OF STOCK INDEFINITELY $ 0Call 512-447-8888 for info
7 0017-00003-0369 WELLS GARDNER 13" DUAL SYNC COLOR MONITOR Complete RGB MONITOR, picture tube, circuit boards and metal chasis. Modified to plug into your original game harness.OUT OF STOCK: DUE TO THE WORLD-WIDE AGREEMENT TO CEASE PRODUCTION OF LEADED GLASS PICTURE TUBES WE ARE NOT ABLE TO PROVIDE MONITORS AT THIS TIME. WE HOPE TO HAVE AN LCD VERSION AVAILABLE IN THE NEAR FUTURE.TV MONITOR $ 329Call 512-447-8888 for info
8 0017-00900-0000 BLACK PLASTIC C.R.T. MONITOR BEZEL 13 INCHPLASTIC BEZEL $ 25Call 512-447-8888 for info
9 0514-00902-0000 CONTROL SHELF DECORATIVE OVERLAYS - peel and stick - silk screened graphic under polycarbonate sheet, just as the originals were.GRAPHIC OVERLAY $ 39
10 0017-00042-0256 PUSH BUTTON ASSY. — RED FIRE button. Includes huge PAL nut.FIRE BUTTON $ 7
11 A508-00011-0000 CONTROL ASSEMBLY - JOYSTICKCONTROL ASSLY - JOYSTICK - CALL FOR AVAILABILITY $ 0

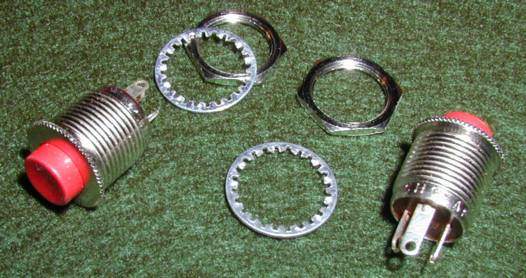

12 0017-00032-0051 START BUTTONS - pair One player and Two player start buttons. Includes mounting hardware.START BUTTONS - pair $ 12
13 0017-00003-0219 #194 BULBS - 14 volt wedge base BULBS - Used in coin door. Box of 10BULBS - box of 10 $ 8

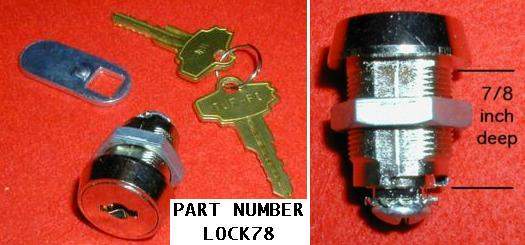

14 A097-00008-0000 LOCK 7/8" barrel with 2 keys and short cam. 2 requiredLOCK + KEYS $ 14
