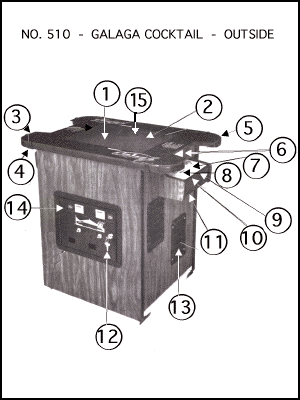

Galaga - cocktail cabinet - out view - parts list

ITEMBally / Midway
part number
DescriptionImagePriceadd to cart
1 0017-00003-0339 19 INCH LCD COLOR RGB MONITOR - Complete display replaces the original picture tube, circuit boards and metal chassis in your cocktail table cabinet. Modified to plug right into your original game's wiring harness which makes for an easy do-it-yourself installation. Read more here:
http://Twobits.com/Monitors/
LCD MONITOR complete $ 389
2 0510-00900-00XF TOP GLASS - HEAVY 1/4" thick 22" x 32" clear tempered glass with rounded corners and polished edges. NOTE: SHIPS IN A CUSTOM DOUBLE WALLED LINED CARTON.TOP GLASS 22 x 32 clear $ 129
3 0000-00000-0000 BLACK PLASTIC TEE MOLDING approx. 10 ft, 3/4 inch and 10' of 1" wide. TRIM for top and all sides.TEE MOLDING $ 25
4 0775-00104-00XF CLIPS set of 8 glass hold down clips. 1 1/4" opening. Black powder coat steel.HOLD DOWN CLIPS (8) $ 39

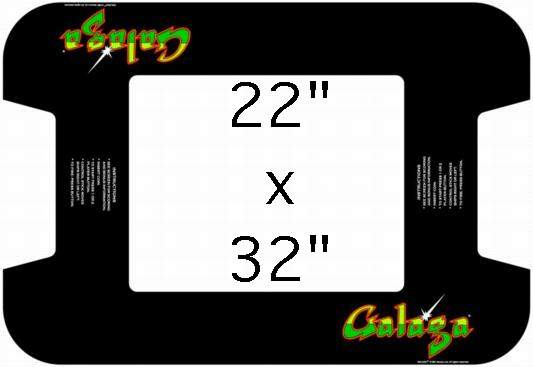

5 0000-00000-0000 DECORATIVE GRAPHIC UNDERLAY 22 x 32 Silk-screened inks on the inside of a polycarbonate sheet.GRAPHIC UNDERLAY $ 49
6 0930-00904-0000 MILKY PLEXIGLASS LIGHT SHIELD - pair - 3 x 9 inches. Mounts behind joystick: allows lights to shine on player's hand.MILKY PLEXIGLASS - pair $ 10
7 0017-00042-0250 PUSH BUTTON ASSY. Ñ RED FIRE button. Includes huge PAL nut. 2 REQUIRED, one for each control panelFIRE BUTTON 2 required $ 7

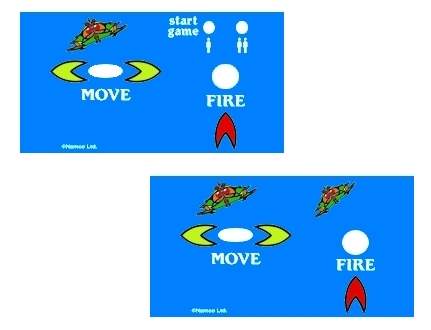

8 0510-00901-0100 + 0200 CONTROL SHELF DECORATIVE OVERLAYS - pair - 9 inches wide with all holes pre-punched. Silk-screened inks on the inside of a polycarbonate sheet. Super peel and stick glue.GRAPHC OVERLAYS - pair $ 49
9 0017-00032-0051 START BUTTONS - pair One player and Two player start buttons. Includes mounting hardware.START BUTTONS - pair $ 12
10 0000-00000-0000 BOLT KIT for 2 cocktail table control panels. (8) #8 x 32 x 1/2 steel carriage bolts with kep nuts and (8) #6 self-tapping phillips head screws; all in black oxide finish.BOLT KIT $ 4

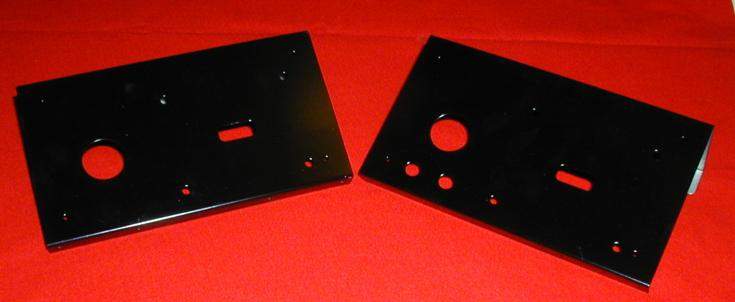

11 0510-00100-00XF CONTROL SHELF pair. Complete metal control panels, black powder coat, all holes drilled. Does NOT include graphic overlays.METAL PANELS (2) $ 40
12 A510-00008-0000 LOCK 7/8" barrel with 2 keys and short cam.LOCK + KEYS $ 14
13 0017-00009-0393 BLACK SPEAKER GRILLE W/SLOTS includes 4 black anodized corner bolts and KEP nuts. 5 1/2" x 9". A perfect fit to our 6" x 9 speaker below.SPEAKER GRILLE $ 18
14 0017-00003-0219 #194 BULBS - 14 volt wedge base BULBS (6 used) Used behind joysticks and in coin door.BULBS - box of 10 $ 8
15 0927-00903-0000 BLACK PLASTIC C.R.T. BEZEL Fits around your 19 inch monitor to block any light getting around the picture tube. PLEASE NOTE: Freight charges on this item may exceed it's value. You should only purchase it along with a tempered upright glass bezel. ALSO: This item is NOT REQUIRED if you replace the original CRT monitor in your game with the flat screen LCD monitor listed above.PLASTIC TV BEZEL $ 49
16 0017-00003-0259 SPEAKER 6 X 9 inches, 8 Ohm, 7 WattSPEAKER $ 24
